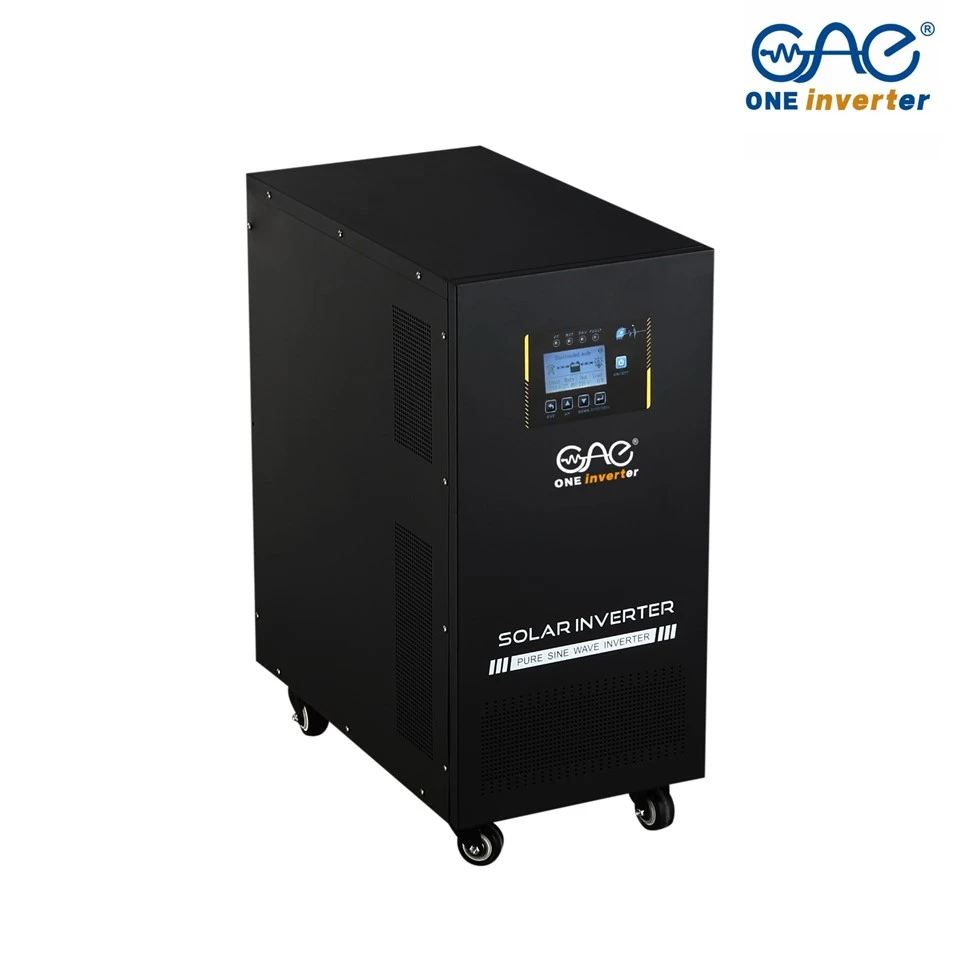

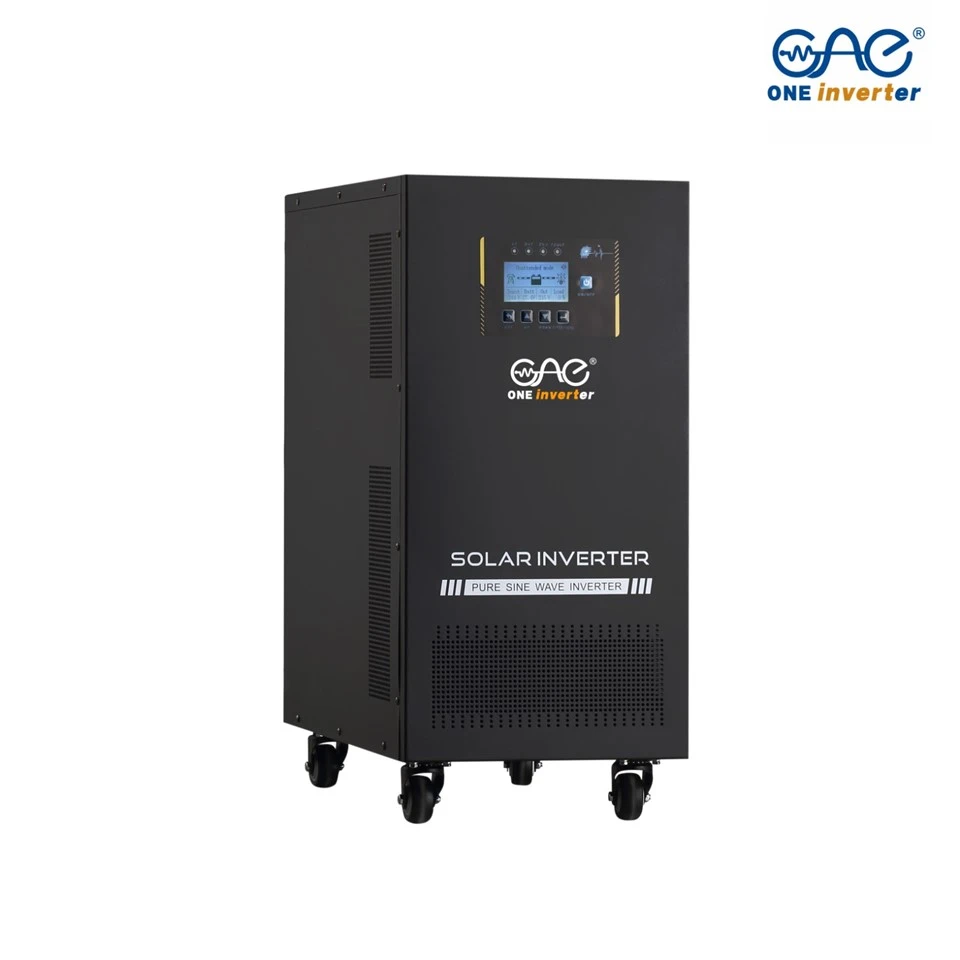

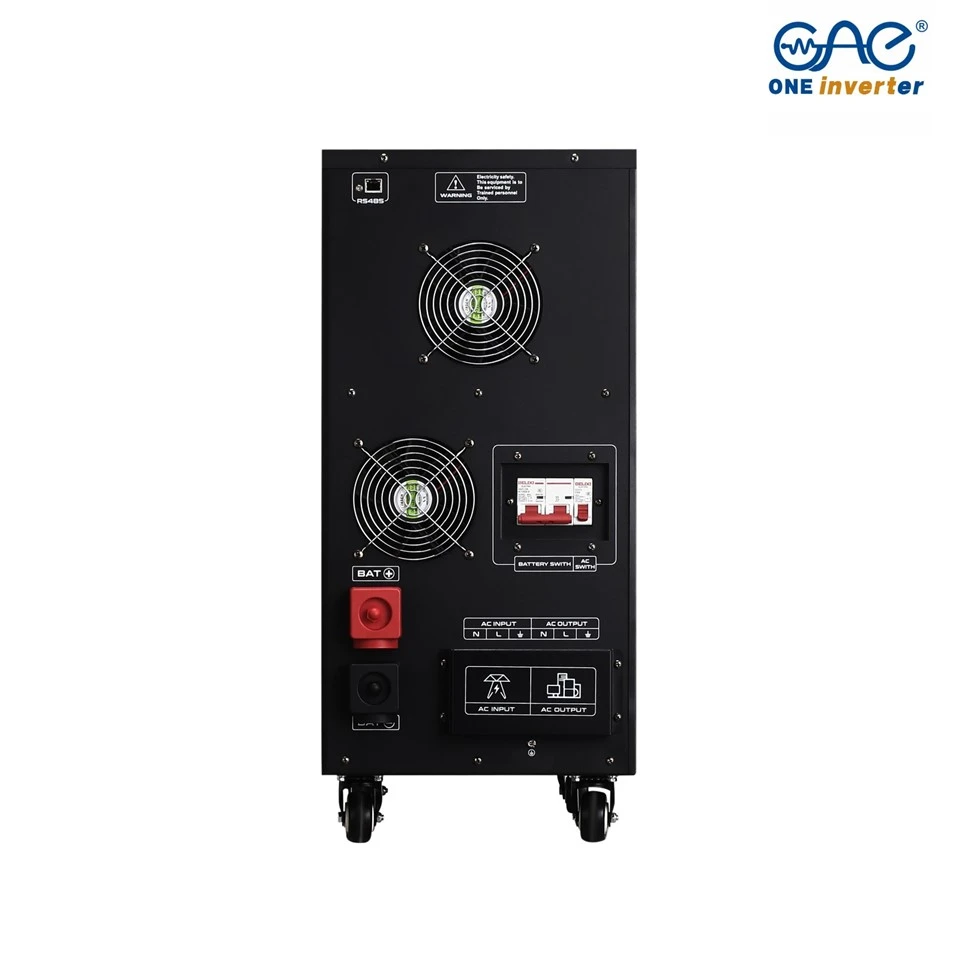

10kW pi bon sinis Vagè 48V Entwodiksyon
Sa a 10kW pi bon onn onn onn 48V se yon aparèy pwofesyonèl-klas konvèsyon pouvwa ki fèt pou endistriyèl, komèsyal ak gwo-echèl aplikasyon pou-kadriyaj.

Rated pouvwa 10kw vag pouvwa 30kw

AC Antre Voltage 220VAC AC Sòti Voltage 220VAC

48VDC pou batri 20a maksimòm AC chaj aktyèl

Kòm eleman debaz la nan sistèm lan, li ka stably pwodiksyon pi sine onn AC (THD<3%), perfectly adapting to various sensitive electronic equipment and motor loads. The device has an instantaneous peak power output capacity of 30KW (lasting 10 seconds), which can easily cope with high current impact scenarios such as motor starting.The inverter design adopts a 48V battery system architecture and supports a maximum of 20A AC charging current to ensure that the battery pack can be quickly replenished in rainy weather. The conversion efficiency of the whole machine is as high as more than 85%, and it can still maintain an efficient conversion of more than 85% when running at full load. The unique intelligent temperature control system cooperates with multiple sets of cooling fans to work stably in an ambient temperature range of 0℃ to 60℃.

Rekòmande konfigirasyon sistèm solè:

Panno pv: 12 455 w monokristalin panno silikon (5.46kW pouvwa total)

Batri pake: 48V 400AH ityòm batri (19.2kWh depo enèji)

Endepandan MPPT Kontwolè: 80A/150V 1 Inite

Mains Charger: 48V/20A 1 Inite

Se sistèm lan espere jenere yon mwayèn pouvwa chak jou nan sou 22kWh (kalkile ki baze sou 4 èdtan nan solèy ekivalan), ki ka sipòte 3P èkondisyone nan kouri kontinyèlman pou 6 èdtan, oswa 10kW ponp dlo nan travay pou 2 èdtan.
